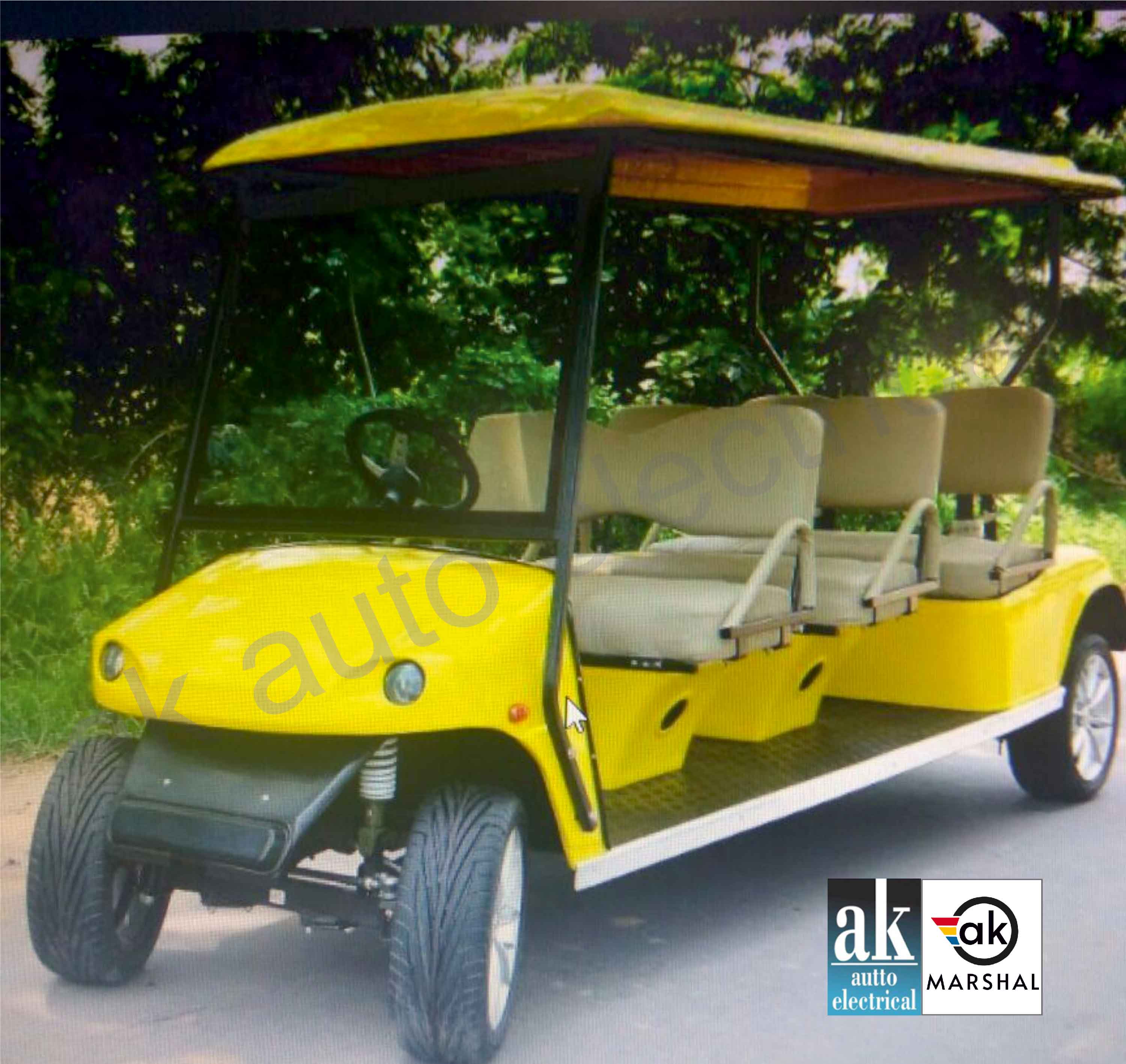

AK MARSHAL

"AK MARSHAL" is specially design with technical qualified engineer team and use high quality branded product for best performance, safety & comfort. Our "AK MARSHAL" can be use with option of 6 Seater. It finds a balance point between driving power and loading capacity, climbing performance and makes the vehicle easy to drive, environmental friendly with low cost of driving and low noise. Our "AK MARSHAL" are now widely used for indoor purpose like Wedding Events, VIP visit, Builder side visit, Resorts, Hotels, Factories production plant, Education institute, Zoo, Hospital, Raj bhavan, Temples, Airport, Railway Station, Theme park etc We hereby commit to "meet the requirements of customers" as rule of conduct, to "honesty, quality fist, service oriented as operation philosophy, to provide safe and convenient transportation to all. Our mission is to serve society with a vehicle of Low running cost and green pollution free environment. Our Company's Mission Statement is "FROM TRUST TO FAITH"
   Models Available:
  • 2 Seater
  • 6 Seater (All front facing)
  • 6 Seater (4 front and 2 Back)

Technical Specifications
  • Model : AK Marshal
  • Seating Capacity : 2 seater with Luggage Box (Including Driver)
  • Speed : Max. 25 Km/ Per Hr.
  • Max Climbing : 25%
  • Turning Radius : 5.5 mtr
  • Ground Clearance : 130 mm / 160 mm
  • Dimension (LXWXH) : 4350 mm X1200 mm X 1900 mm
  • RIM : Normal / Alloy Wheels
  • Wheel : 18x8.5x-8/ 175x60Rx13 Alloy Wheel Tubeless Tires
  • Brake : Mechanical Drum Brake
  • Control System : Steering Wheel, Forward/Reverse Switch in hand, foot operated starterpedal & Break.
  • Battery : 48V (6 Nos. 180AH, 8 Volts each) Action make Deep Discharge Lead Acid Batteries Specially Designed for Golf Carts
  • Battery Life : 1000 Cycle ( Approx)
  • Motor Specification : A.C. Motor (4.0 KW) Indian Make
  • Motor Controller : 48Volt A.C. Controller Curtis
  • Chassis : Tubular M.S.
  • Steering System : (Manual /Power / Auto) Right Hand Drive, Automotive Rack 'n' Pinion
  • Suspension : Leaf Spring (Rear) & Leaf Spring With Shock absorber ( Front)
  • Body : FRP
  • Color : As Per Customer Choice
  • Charger : 48Volt 20 amp (Sirius Make )
  • Break System : Hyd. Breaks on Rear Wheel / Mechanical Drum Breaks.
  • Head Light : Available Tail Light & Horn
  • Indicators : Break Light & Side Indicator available
  • Body (STRUCTURE) : Fiber
  • Tool Kit : Provided
  • Kerb Weight : 620 kg
  • Weight Carrying Capacity : 700 kg
  • Charging Time : 8-10 Hours
  • Distance Covered in Charge : 45-50 Km
  • Warranty : One Year On Site


GOLF CART VIDEO GALLERY

AK MARSHAL

GOLF CART PHOTO GALLERY

AK MARSHAL























Specifications
Series 4 Seater (all Front) 6 Seater (4 Front 2 Back) 6 Seater (all Front)
Motor (Watt/ Volt / AC/DC) 4.0KW, 48Volt, A.C. 4.OKW, 48Volt, A.C. 4.OKW, 48Volt, A.C.
Controller (Make - AC / DC) A.C. Controller, Curtis make A.C. Controller, Curtis make A.C. Controller, Curtis make
Battery (Make, Output / Volt) Action Batteries, 6Nos. 8Volt 180Amps each, Lead Acid Batteries Action Batteries, 6Nos. 8Volt 180Amps each, Lead Acid Batteries Action Batteries, 6Nos. 8Volt 180Amps each, Lead Acid Batteries
Battery Life 1000 Cycles 1000 Cycles 1000 Cycles
Charger (Make / Charge Type) 48Volt 15Amps 48Volt 15Amps 48Volt 15Amps
Seating Capacity (including driver) 4 Passengers (All Front) 6 Passengers (4Front + 2Back) 6 Passengers (All Front)
Chassis Tubular M.S. Tubular M.S. Tubular M.S.
Brake Mechanical Drum Brakes Mechanical Drum Brakes Mechanical Drum Brakes
Body (Structure) Fiber Fiber Fiber
Tyre (Size) 18x8.5-8/ 175x60RX13 Tube Less Tyre 18x8.5-8/ 175x60Rx13 Tube Less Tyre 18x8.5-8/ 175x60Rx13 Tube Less Tyres
Rim Normal / Alloy Wheels Normal / Alloy Wheels Normal / Alloy Wheels
Steering system (Manual / Auto/ Power) Right Hand Drive, Automotive Rack & Pinion Right Hand Drive, Automotive Rack & Pinion Right Hand Drive, Automotive Rack & Pinion
Front suspension Leaf Springs with Shock Absorbers Leaf Springs with Shock Absorbers Leaf Springs with Shock Absorbers
Rear suspension Leaf Springs Leaf Springs Leaf Springs
Curb Weight (kg) 520Kgs 550Kgs 600Kgs
Load Capacity (kg) 450Kgs 500Kgs 600Kgs
Dimensions (LXWXH) 3100X1200X1900 3550X1200X1900 3900X1200X1900
Ground Clearance (Full Load) 130mm/160mm 130mm/160mm 130mm/160mm
Turning radius (mtr) 4.5mtr 4.5mtr 5.5mtr
Distance per charge (On Plain Surface) 55-60kms 50-55kms 50-55kms
SpeedMax (full running load on Plain Surface 25KMPH 25KMPH 25KMPH
Capacity max climbing(full load) 25% 25% 25%
Warranty One Year on Site One Year on Site One Year on Site
