Key Features |
Controller |
CONTROLLER 48v 36 Tube 60 amp |
MOTOR |
48 V 1000 W BLDC MOTOR (70 mm Magnet) |
BATTERY |
Lithium ion battery 80ah / 48V |
CHARGER |
HIGH FREQUENCY SMPS CHARGER, OUTPUT 48V/15A |
|
Performance |
Range (Loaded) (Km)* |
UP TO 80 KM* in Ideal Condtion |
Max Speed (Km/h) |
Up to 25 Km/h |
Min. Turning Radius (m) |
1.5 m |
Max. Climbing Ability (m) |
Up to 10% |
BRAKING DISTANCE |
4<=M |
Max. Loading Weight (Kg) |
450 Kgs |
Charging Time (hour) |
4-5HOURS* |
|
Steering & Suspension |
Steering System |
2 WHEELERS TYPE |
Brake System |
Hydraulic Brake |
Accelerator |
Throattle Two Wheeler Type ( D/R) |
Front Suspension |
Hydraulic shocker with helicle spring |
Rear Suspension |
TAPER LEAF SPRING WITH HYDRAULIC CYLINDER SHOCK ABSORBER |
Driving Mode |
REAR AXEL TWO STAGE DECELERATION, MOTOR DIRECT DRIVING |
Rear Axle |
ALUMINIUM DIFFERENTIAL CAGE, INTEGARTED 10.25:1 GEAR RATIO |
Wheel & Tyre |
ALLOY Rims / Steel Rims with 3.75-12 or 90-90-12 |
|
Dimension |
Overall Dimension (mm) |
3200 X 1000 X 2300 mm |
Min. Ground Clearance (mm) |
220 |
Wheel Base (mm) |
2100 |
|

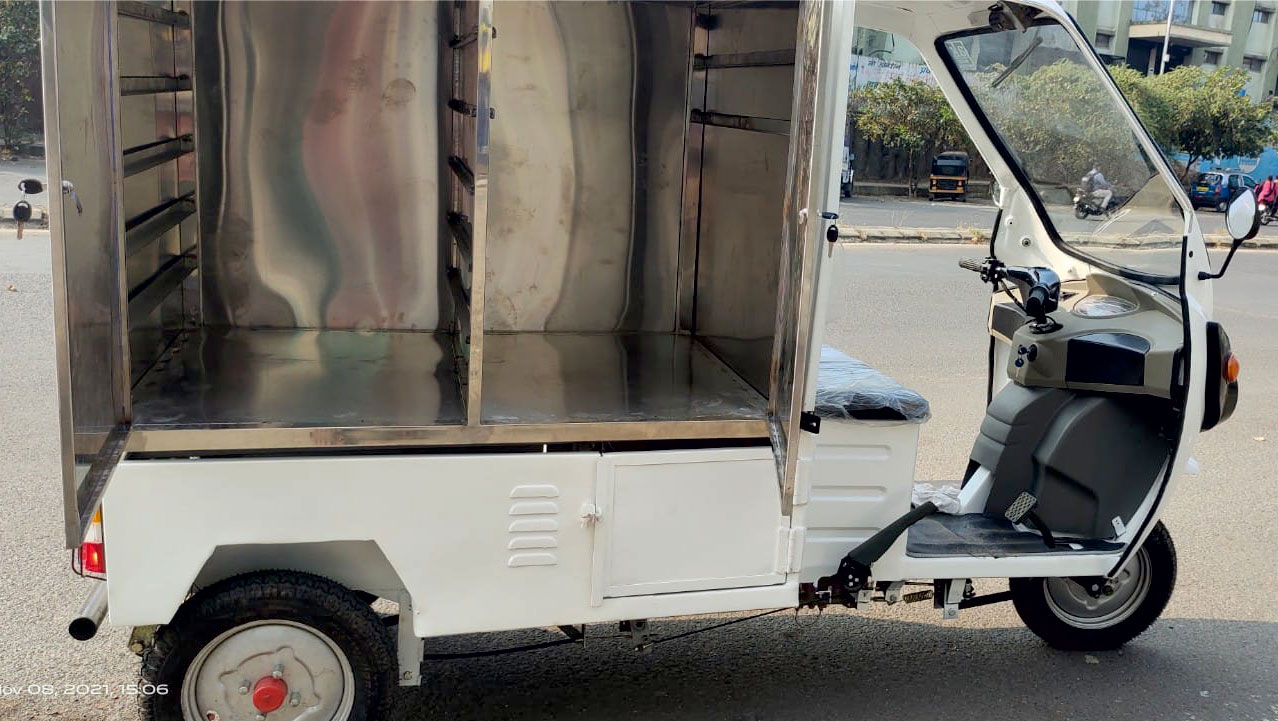

Cart Specifications |
CART DIMENSION (MM) |
1800 X 1000 X 1530 mm |
CONTAINERS |
32 CONTAINERS OF SIZE 305 X 410 X 200 mm (LXWXH) |
OTHER |
1800 x 850 mm Window with transparent Acrylic sheet on both side & 1800 X 450 mm Adjustable rack. |
BILLING COUNTER |
Dedicated Billing Counter at rear end of cart with Storage Facility of Packing Material & Promotional Goods |
ELECTRICITY |
4 Led Inside Container & 1 Led At Billing Counter With Switch And Socket |
|
Body Frame |
Frame & Chassis |
ERW2 WELDED, Suare Tubular Pipe or 'C' Section Mold process Structure WITH RUST PROOF COATING PAINTING* |
Body & Roof |
1 mm sheet meteal with stamping process & High Impact Fibberglass |
Windshield |
TOUGHENED LAMINATED SAFETY GLASS |
Cushion |
1 PERSON |
Backrest |
REBORN SPONGE WITH ARTIFICIAL LEATHER PART OF BODY |
Floor Mat |
Skip Proof Rubber. |
Dashroof |
SPEED INDICATOR ,BATTERY POWER INDICATOR, IGNITION KEY ON IT |
|
Electric Systems |
Lights |
12 V HEADLIGHT FRONT TURNING, TAIL LIGHT ETC. |
Horn |
Electric Horn 12V |
REVERSE BUZZER |
ELECTRIC, 12V |
DC to DC Converter |
48 V to 12 V 15 Amps. |
Wiper & Wiper Motor |
Electric 12 V |
Digital Meter |
INCLUDING SPEEDOMETER, MILEAGE, VARIOUS INDICATORS INCLUDING : HEADLIGHT,TURNING LIGHT, PARKING, EMERGENCY LIGHT, REVERSE |
|
|
