Key Features |
|
DETAIL
|
6 SEATER
|
8 SEATER
|
| Controller |
Controller 48 V - 400 AMP. |
Controller 48 V - 400 AMP. |
| Motor Power |
48 V 4 KW DC Motor |
48 V 4 KW DC Motor |
| Battery |
6 V 225 AH Battery 8 Pcs. |
6 V 225 AH Battery 8 Pcs. |
| Charger |
High Frequency Onboard Charger, Output 48V/22A. |
High Frequency Onboard Charger, Output 48V/22A. |
|
Performance |
|
DETAIL
|
6 SEATER
|
8 SEATER
|
| Passenger Capacity |
6 Persons (4+2 Seater) |
8 Persons (6+2 Seater) |
| Range (Loaded) (Km)* |
Up to 70 Km |
Up to 70 Km |
| Max Speed (Km/h) |
Up to 25 Km/h |
Up to 25 Km/h |
| Min. Turning Radius (m) |
4.5 m |
4.5 m |
| Max. Climbing Ability (m) |
Up to 10% |
Up to 10% |
| Max. Movement after brake at speed of 20 Km/h |
≤ 1.5 m |
≤ 1.5 m |
| Max. Loading Weight (Kg) |
420 Kgs |
560 Kgs |
| Charging Time (hour) |
8 |
8 |
|
Steering & Suspension |
|
DETAIL
|
6 SEATER
|
8 SEATER
|
| Steering System |
Single-Stage Rack and Pinion Steering System |
Single-Stage Rack and Pinion Steering System |
| Brake System |
4 Wheel Hydraulic Front Disc, Rear Drum Brake with parking brake |
4 Wheel Hydraulic Front Disc, Rear Drum Brake with parking brake |
| Accelerator |
Resistance Type, Step Less Speed Change |
Resistance Type, Step Less Speed Change |
| Front Suspension |
Independent Suspension with double arm |
Independent Suspension with double arm |
| Rear Suspension |
Taper Leaf Spring with hydraulic cylinder shock absorber |
Taper Leaf Spring with hydraulic cylinder shock absorber |
| Driving Mode |
Rear Axle Two Stage Deceleration, Motor Direct Driving |
Rear Axle Two Stage Deceleration, Motor Direct Driving |
| Rear Axle |
Aluminium Differential Cage, Integrated, 10.25:1 Gear Ratio |
Aluminium Differential Cage, Integrated, 10.25:1 Gear Ratio |
| Wheel & Tyre |
Alloy Wheel 175/65-15 |
Alloy Wheel 175/65-15 |
|
Dimension |
|
DETAIL
|
6 SEATER
|
8 SEATER
|
| Overall Dimension (mm) |
4000 x 1370 x 1970 (L x W x H)mm |
4860 x 1370 x 1970 (L x W x H)mm |
| Min. Ground Clearance (mm) |
220 |
220 |
| Wheel Base (mm) |
2700 |
3500 |
| Front Wheel Tread(mm) |
1105 |
1105 |
| Rear Wheel Tread(mm) |
1150 |
1150 |
|
Body Frame |
|
DETAIL
|
6 SEATER
|
8 SEATER
|
| Frame & Chassis |
ERW2 Welded, Steel Frame work with rust proof coating painting. |
ERW2 Welded, Steel Frame work with rust proof coating painting. |
| Body & Roof |
High Impact Fiber Glass |
High Impact Fiber Glass |
| Windshield |
Toughened Laminated Safety Glass |
Toughened Laminated Safety Glass |
| Roof Support |
Stainless Steel Frame |
Stainless Steel Frame |
| Cushion |
Reborn Sponge with Artificial Leather and wooden bottom. |
Reborn Sponge with Artificial Leather and wooden bottom. |
| Backrest |
Reborn Sponge with Artificial Leather. |
Reborn Sponge with Artificial Leather. |
| Armrest |
Part of Body. |
Part of Body. |
| Floor Mat |
Skip Proof Rubber. |
Skip Proof Rubber. |
| Dashroof |
Colored Leather with F/R Switch, Battery Power Indicator, Ignition Key on it. |
Colored Leather with F/R Switch, Battery Power Indicator, Ignition Key on it. |
|
Electric Systems |
|
DETAIL
|
6 SEATER
|
8 SEATER
|
| Lights |
12 V LED Head light front turning, Fog, Tail Light (includes brake light & turning light |
12 V LED Head light front turning, Fog, Tail Light (includes brake light & turning light |
| Horn |
Electric Horn 12V |
Electric Horn 12V |
| DC to DC Converter |
48 V to 12 V 22 Amps. |
48 V to 12 V 22 Amps. |
| Wiper & Wiper Motor |
Electric 12 V |
Electric 12 V |
| Digital Meter |
Including Speedometer, Mileage, Various indicators including: Headlight, Turning Light, Parking, Emergency Light & Reverse. |
Including Speedometer, Mileage, Various indicators including: Headlight, Turning Light, Parking, Emergency Light & Reverse. |
|
|
|

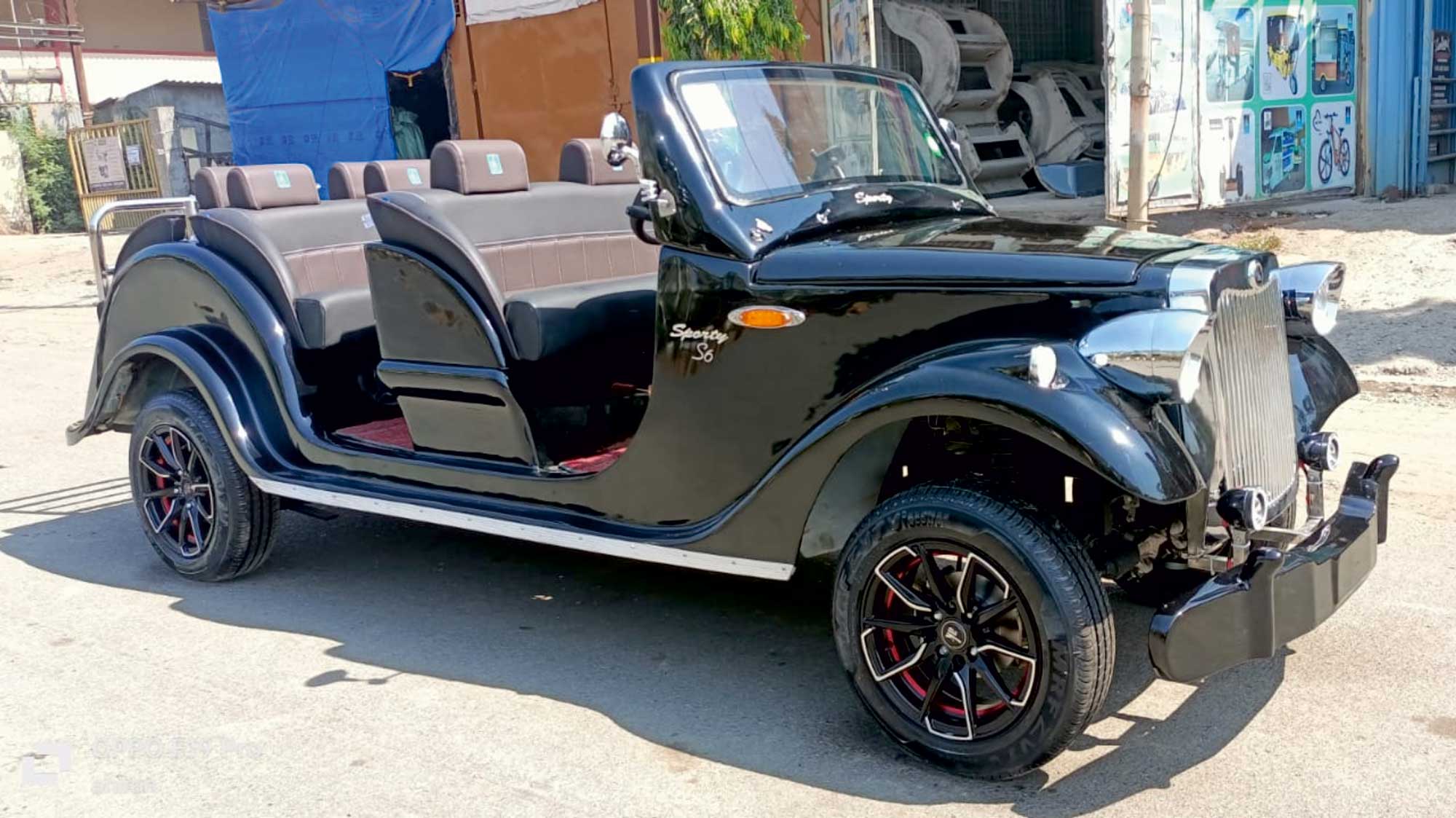

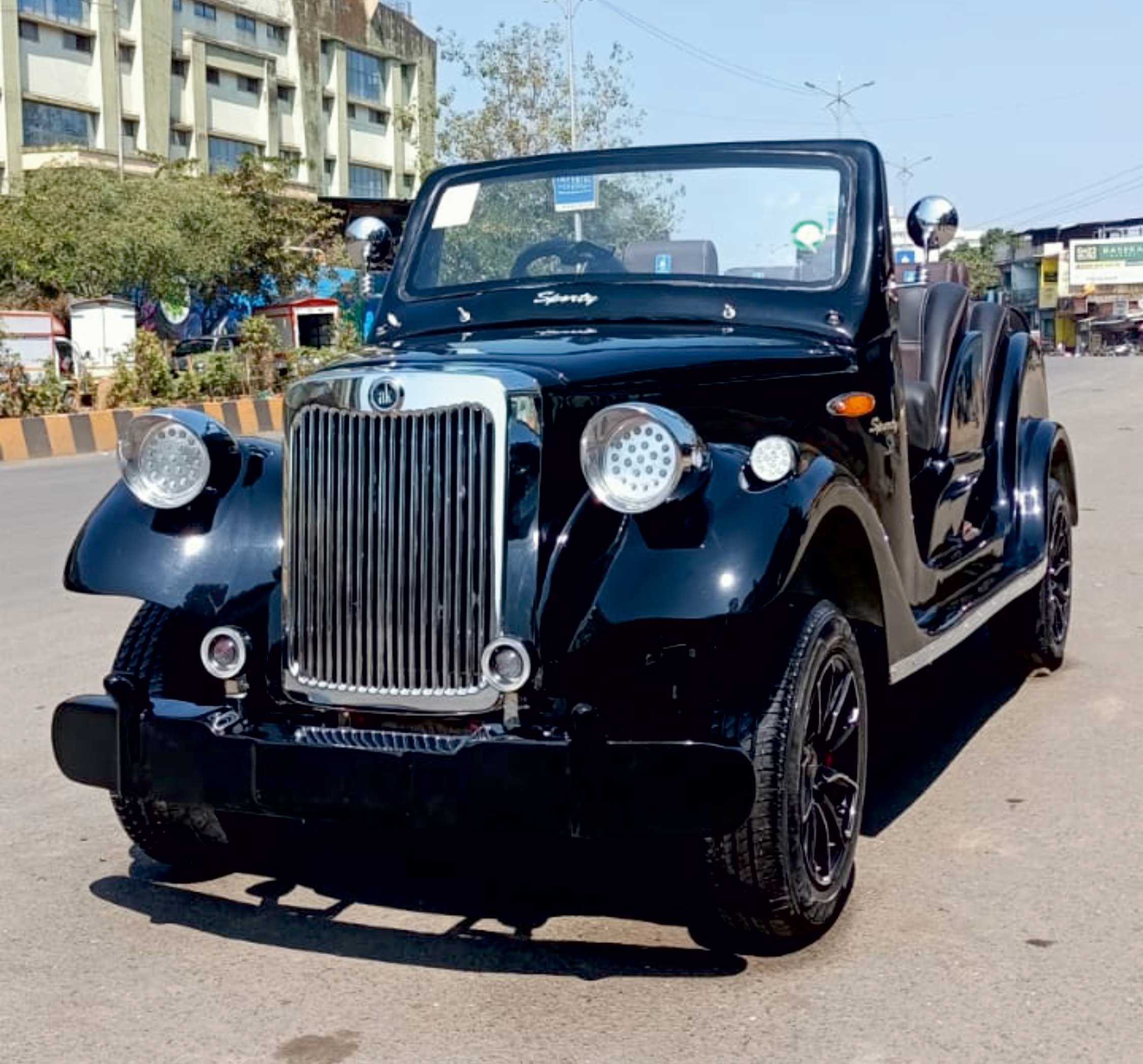

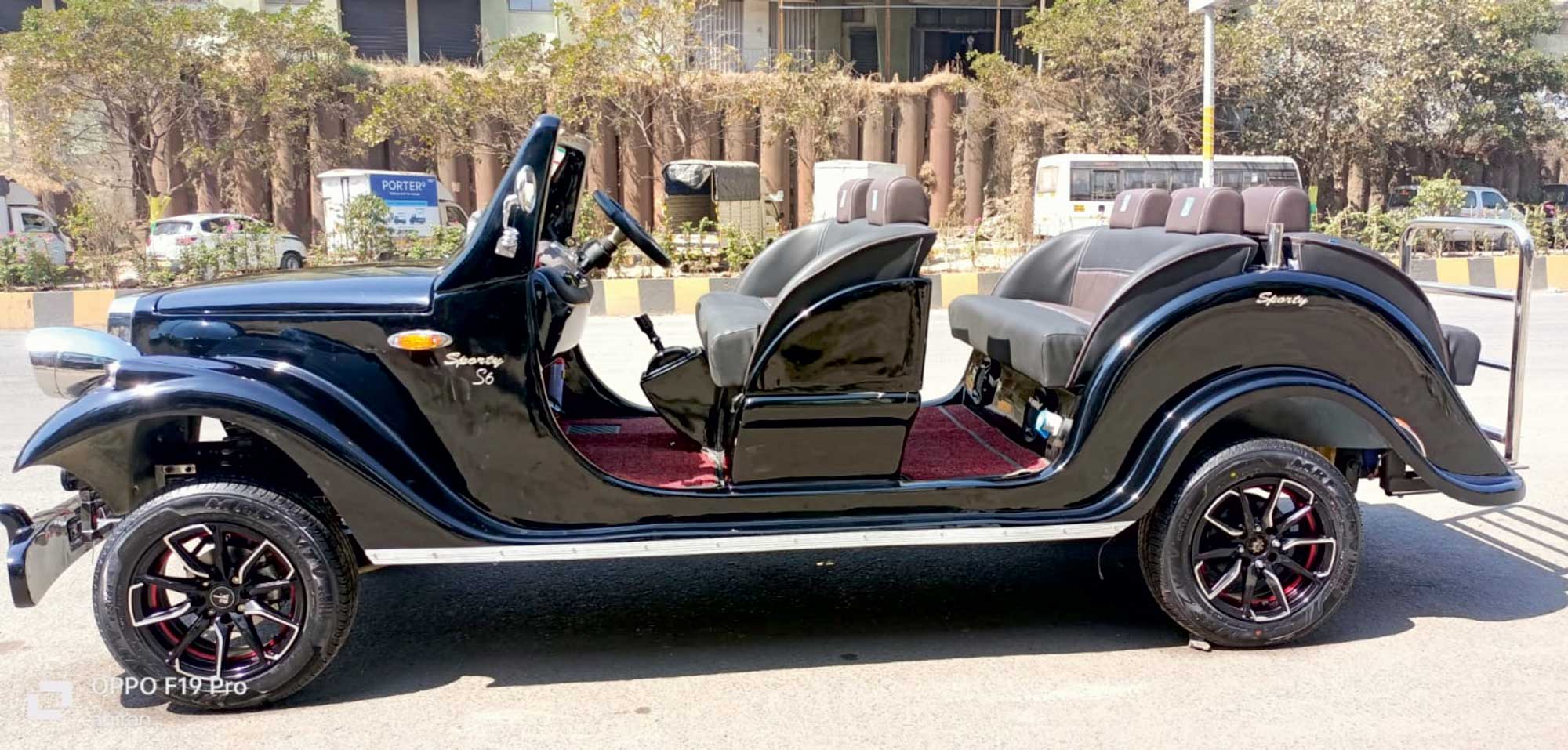

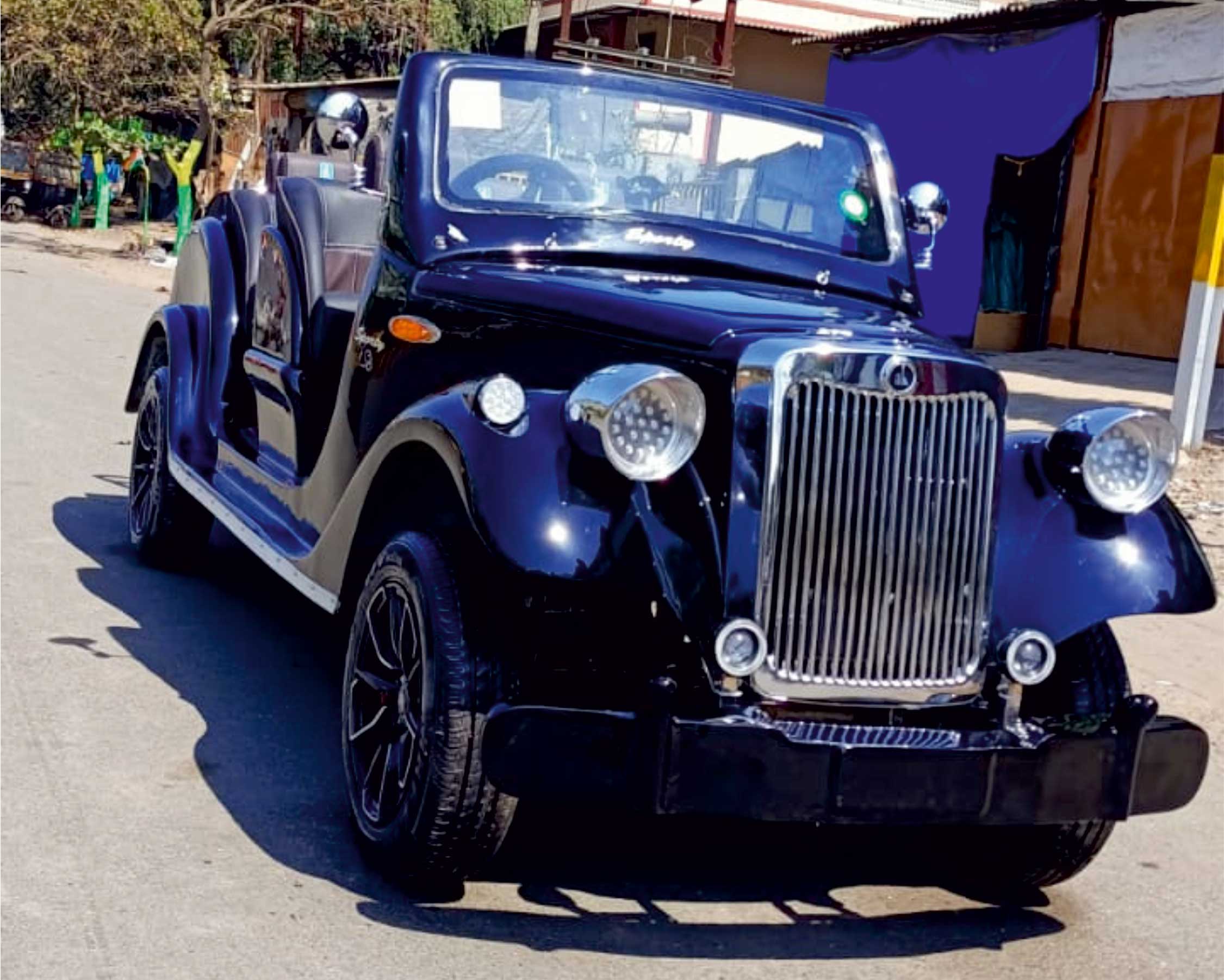

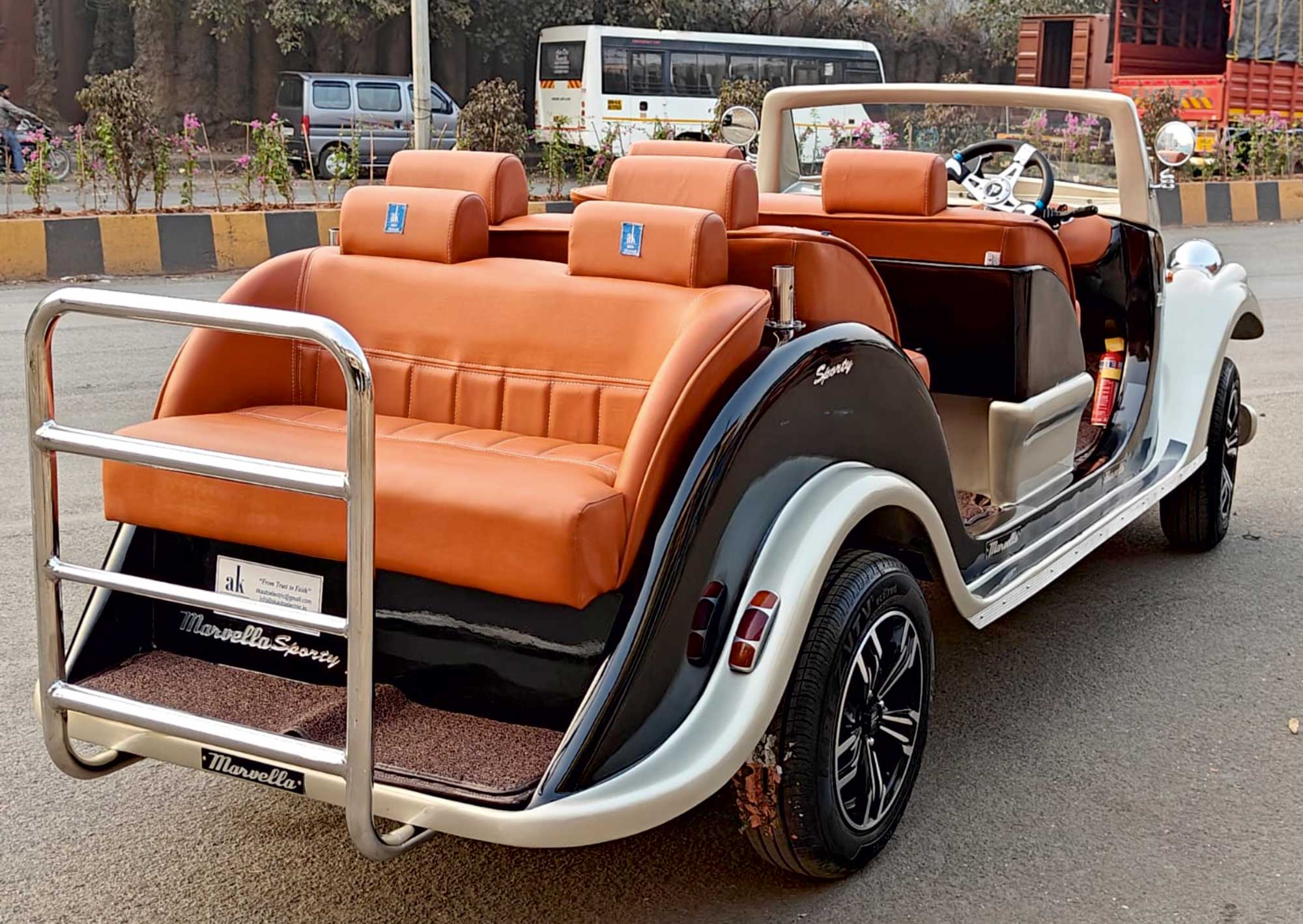

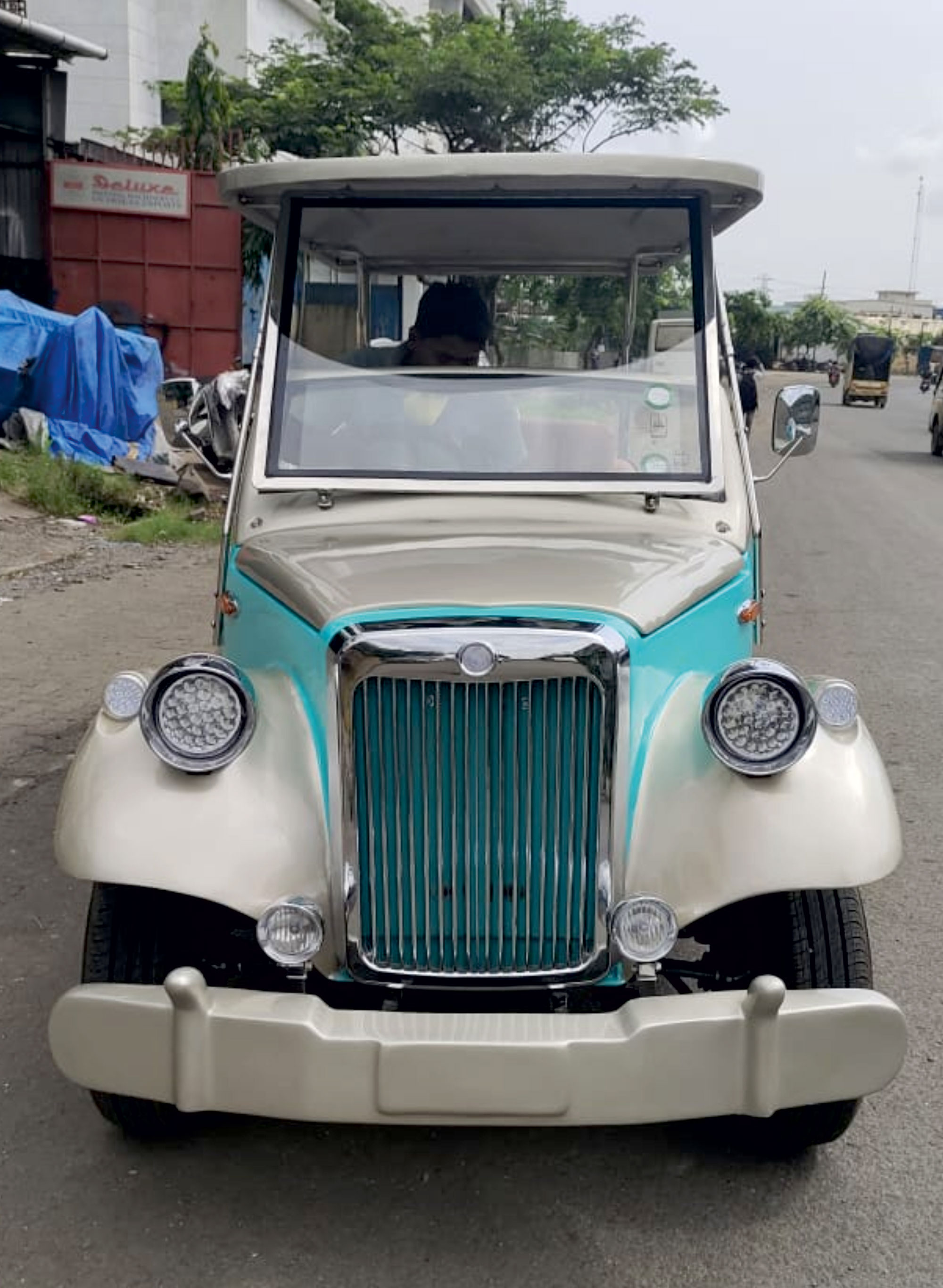

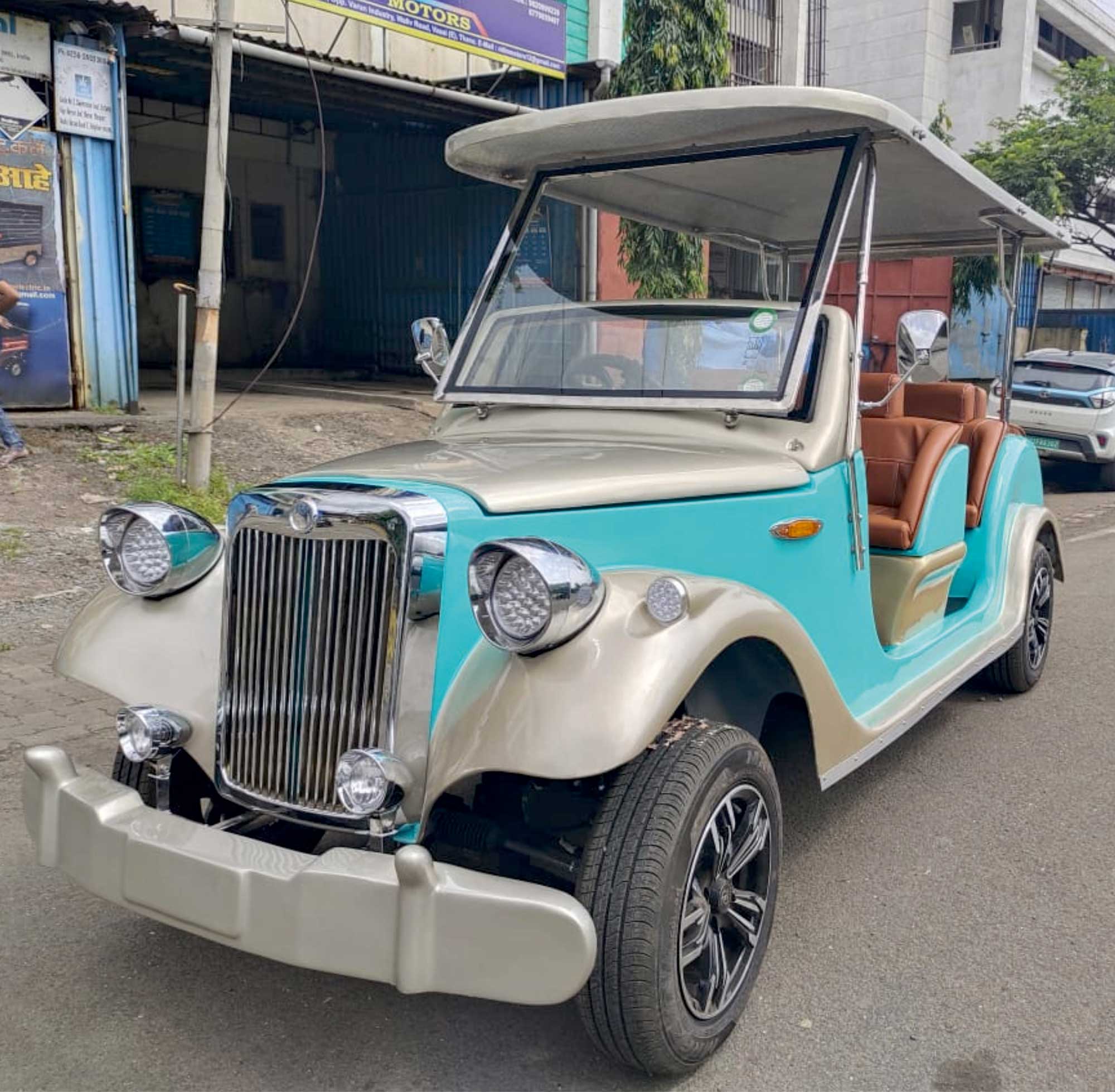

MARVELLA SPORTY
