Dimension |
DETAIL
|
6 SEATER
|
8DX SEATER
|
MARVELLA OVERALL DIMENSION (MM) |
4267*1524*1981 (L*W*H) MM |
5181*1524*1981 (L*W*H) MM |
MARVELLA OVERALL DIMENSION (INCH) |
168*60*78(L*W*H)INCH |
204*60*78(L*W*H)INCH |

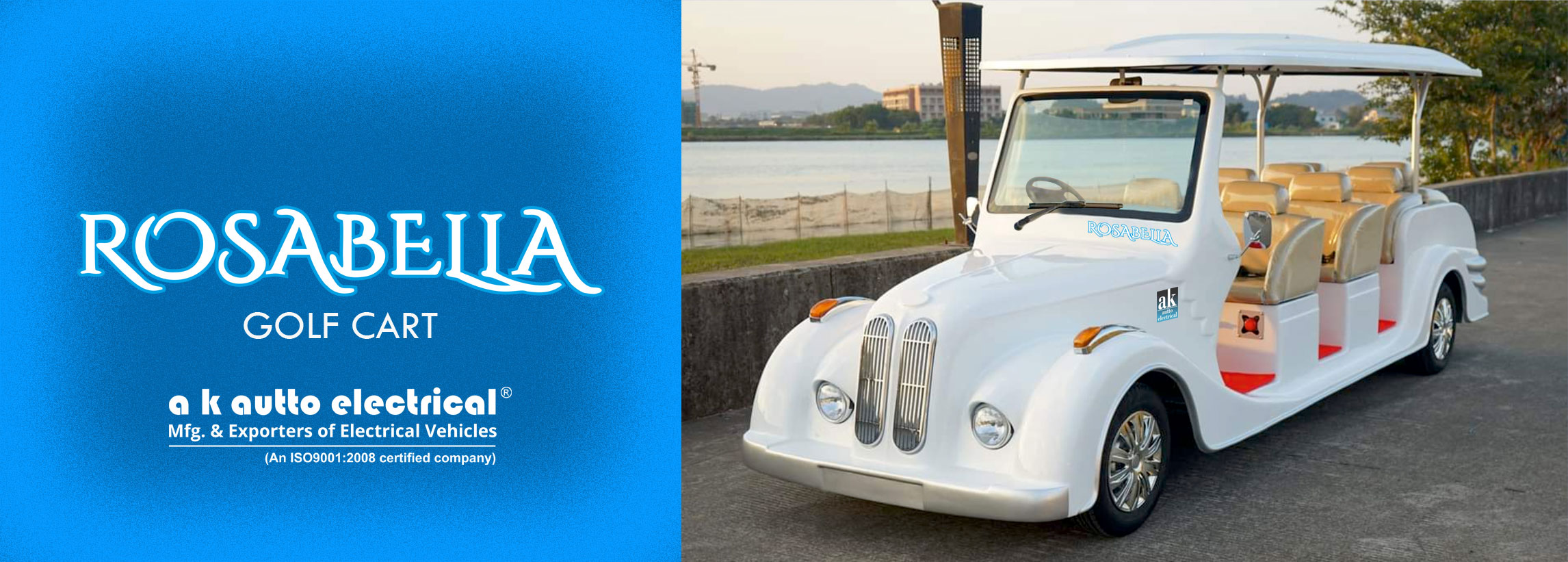

ROSABELLA OVERALL DIMENSION(MM) |
4328*1527*1981(L*W*H)MM |
5242*1524*1981(L*W*H)MM |
ROSABELLA OVERALL DIMENSION (INCH) |
170*60*78(L*W*H)INCH |
206*60*78(L*W*H)INCH |
WEIGHT |
670KG |
750KG |
Min. Ground Clearance (mm) |
250 |
250 |
Wheel Base (mm) |
2700 |
3500 |
Front Wheel Tread(mm) |
1105 |
1105 |
Rear Wheel Tread(mm) |
1150 |
1150 |
|
Body Frame |
DETAIL
|
6 SEATER
|
8DX SEATER
|
Frame & Chassis |
ERW2 Welded, Steel Frame work with rust proof coating painting. |
ERW2 Welded, Steel Frame work with rust proof coating painting. |
Body & Roof Windshield |
HIGH IMPACT FIBBER GLASS TOUGHENED LAMINATED SAFETY GLASS |
HIGH IMPACT FIBBER GLASS TOUGHENED LAMINATED SAFETY GLASS |
Roof Support |
Stainless Steel Frame |
Stainless Steel Frame |
Cushion |
Reborn Sponge with Artificial Leather and wooden bottom. |
Reborn Sponge with Artificial Leather and wooden bottom. |
Backrest |
Reborn Sponge with Artificial Leather. |
Reborn Sponge with Artificial Leather. |
Armrest |
Part of Body. |
Part of Body. |
Floor Mat |
Skip Proof Rubber. |
Skip Proof Rubber. |
Dashroof |
Colored Leather with F/R Switch, Battery Power Indicator, Ignition Key on it. |
Colored Leather with F/R Switch, Battery Power Indicator, Ignition Key on it. |
|
Electric Systems |
DETAIL
|
6 SEATER
|
8DX SEATER
|
Light |
12 V LED Head light front turning, Fog, Tail Light (includes brake light & turning light) etc. |
12 V LED Head light front turning, Fog, Tail Light (includes brake light & turning light) etc. |
Horn |
Electric Horn 12V |
Electric Horn 12V |
REVERSE BUZZER |
Electric, 12V |
Electric, 12V |
DC to DC Converter |
60V TO 12V 20AMPS |
60V TO 12V 22AMPS |
Wiper & Wiper Motor |
Electric 12 V |
Electric 12 V |
Digital Meter |
Including Speedometer, Mileage, Various indicators including: Headlight, Turning Light, Parking, Emergency Light & Reverse. |
Including Speedometer, Mileage, Various indicators including: Headlight, Turning Light, Parking, Emergency Light & Reverse. |

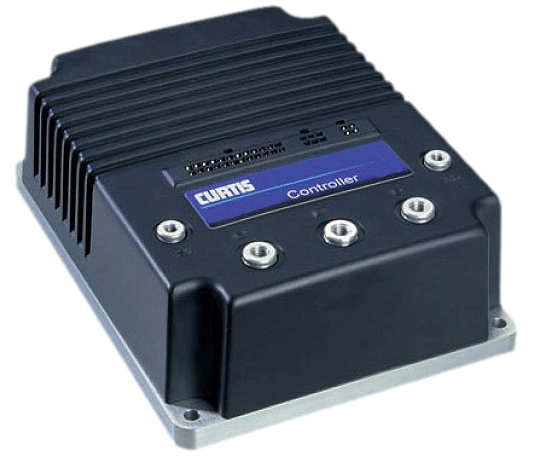

Controller |
3KW PMSM |
3KW TO 7.5 KW PMSM |
Motor |
60V 3000 PSMS MOTOR |
60V TO 72V 3000 PSMS TO 7.5 MOTOR |
Battery |
12V 150AH TO 160AH BATTERY (5) |
12V 150AH TO 160AH BATTERY (5/6 BATTERY) |
CHARGER SMPS INDIAL REPUDED BRAND |
60V 15AMP OR 16AMP |
60V/72V 15, 16, 21AMP |
|
Performance |
DETAIL
|
6 SEATER
|
8DX SEATER
|
Passenger Capacity |
6 Persons (4+2 Seater) |
8 Persons (6+2 Seater) |
Range (Loaded) |
UPTO 35 TO 40 KM * |
UPTO 35 TO 40 KM * |
Max Speed |
UP TO 25KM/H* |
UP TO 25KM/H* |
Min. Turning Radius (m) |
4.5m |
4.5m |
Max. Climbing Ability |
Up to 10% |
Up to 10% |
Max. Movement after brake at speed of 20 Km/h |
≤ 1.5 m |
≤ 1.5 m |
Max. Load Weight (Kg) |
500 Kg |
700 Kg |
Charging Time (hour) |
8 |
8 |
MOTOR TORQUE |
75Nm |
75Nm to 95Nm |
|
Steering & Suspension |
DETAIL
|
6 SEATER
|
8DX SEATER
|
Steering System |
Single-Stage Rack and Pinion Steering System |
Single-Stage Rack and Pinion Steering System |
Brake System |
4 Wheel Hydraulic Front Disc, Rear Drum Brake with parking brake |
4 Wheel Hydraulic Front Disc, Rear Drum Brake with parking brake |
Accelerator |
Resistance Type, Step Less Speed Change |
Resistance Type, Step Less Speed Change |
Front Suspension |
Independent Suspension with double arm |
Independent Suspension with double arm |
Rear Suspension |
Taper Leaf Spring with hydraulic cylinder shock absorber |
Taper Leaf Spring with hydraulic cylinder shock absorber |
Driving Mode |
Rear Axle Two Stage Deceleration, Motor Direct Driving |
Rear Axle Two Stage Deceleration, Motor Direct Driving |
Rear Axle |
Aluminium Differential Cage, Integrated, 10.25:1 Gear Ratio |
Aluminium Differential Cage, Integrated, 10.25:1 Gear Ratio |
Wheel & Tyre |
ALLOY WHEEL 165:70-14 MRF / APOLLO/ CEAT |
ALLOY WHEEL 165:70-14 MRF / APOLLO/ CEAT |
|
*UNDER IDEAL CONDITION
|
